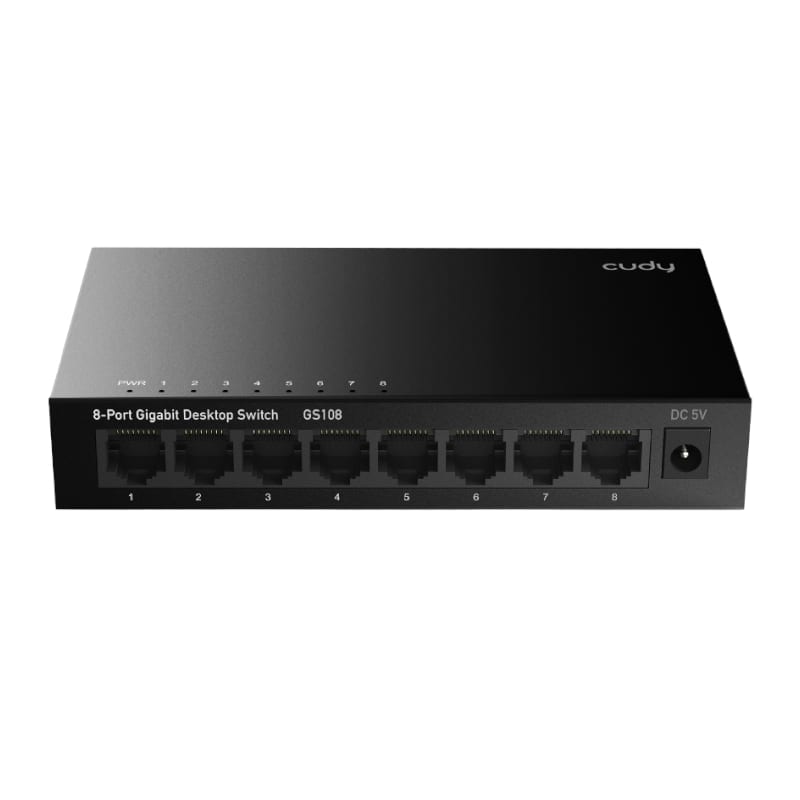

Cudy 8-Port Gigabit Unmanaged Metal Desktop Switch

Brand: Cudy

NetworkingSwitches

  • Delivered nationwideDoor-to-door, anywhere in South Africa
  • 2 YearLocal support
  • 7-day returnsChange your mind within 7 days of delivery. Returns policy
  • Secure checkoutPaid on an encrypted payment page

Description

The Cudy GS108 8-Port Gigabit Desktop Switch allows you to manage your home network with ease. It supports bandwidth speeds of up to 16Gbps and features 6 Ethernet ports and 2 uplink ports. Its high-speed RJ-45 connectors support any 10/100/1000Mbps Ethernet devices.

For additional protection, it features a VLAN mode which helps isolate the ports from each other. The IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably.

Used for many applications the Cudy GS105 works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features an Extend mode for longer distances up to 250 meters.

Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design for silent operation.

FEATURES

  • Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
  • 8 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
  • Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
  • Store-and-Forward switching method
  • Supports 16K MAC address auto-learning & auto-ageing

Product information

Brand
Cudy
SKU
GS108
Warranty
2 Year
Standard configuration
8 10/100/1000M RJ-45 adaptive ports
Switching Capacity
16Gbps
Throughput
11.9Mpps
Packet Neck Scarfer
2.5M
MAC Address
1K
Jumbo Frame
2K
Transfer Mode
Store and forward
MTBF
100000 hour
Network protocol
IEEE802.3 (10Base-T)
Industry Standard EMI
FCC Part 15 CISPR (EN55032) class A
EMS
EN61000-4-2 (ESD), EN61000-4-4 (EFT)
Shock
IEC 60068-2-27
Free Fall
IEC 60068-2-32
Vibration
IEC 60068-2-6
Network Medium
10Base-T: Cat3, 4, 5 or above UTP(≤100m)
100Base-TX
Cat5 or above UTP(≤100m)
1000Base-TX
Cat5 or above UTP(≤100m)
LED Indicators
PWR (Power indicator)
VLAN
Port Isolation, 1-6 ports are isolated each other, all communicate with uplink port 7/8
Default
Default mode, Support loop alarm
Extend
Monitor Mode, 1-6 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode, port 7 and port 8 as an uplink port
Power Voltage
Power Input Voltage: AC 100-240 V
Switch Input Voltage
DC 5V
Product Dimensions
13.7 x 7.7 x 2.5 cm
Product Weight
300g
