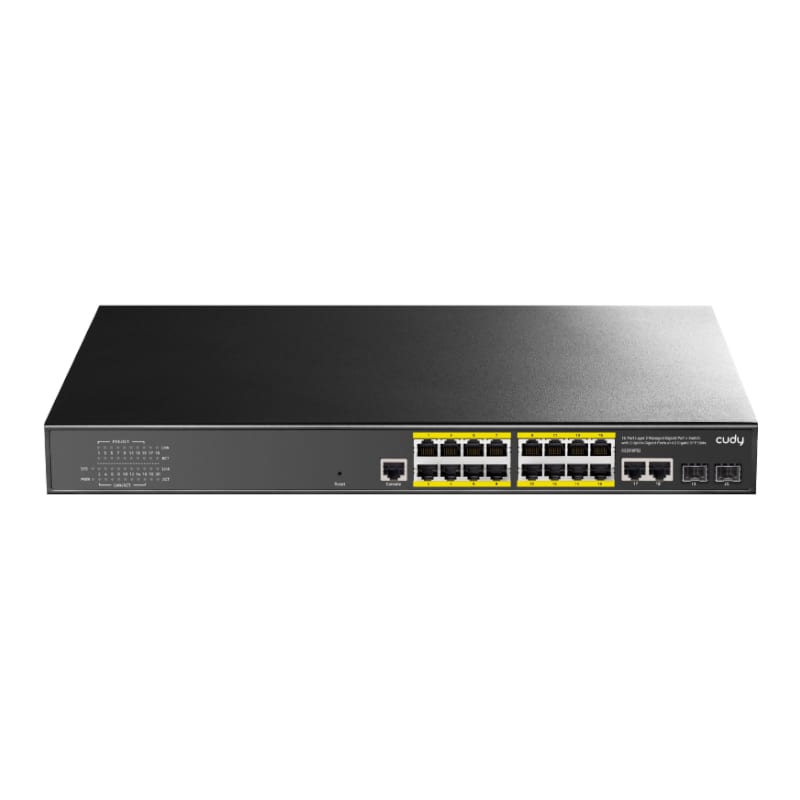

Cudy 16-Port Layer 2 Managed Gigabit PoE+ Switch with 2 Uplink Gigabit Ports and 2 Gigabit SFP Ports 200W - Rack Mount

Brand: Cudy

NetworkingSwitches

  • Delivered nationwideDoor-to-door, anywhere in South Africa
  • 2 YearLocal support
  • 7-day returnsChange your mind within 7 days of delivery. Returns policy
  • Secure checkoutPaid on an encrypted payment page

Description

The Cudy 16-Port Layer 2 Managed Gigabit PoE+ Switch with 2 x Uplink and 2 x FSP slots allows you to manage your home or office network with ease. It features 16 Ethernet PoE ports with 2 x uplink ports and 2 x SFP slots. Its PoE RJ-45 connectors support any 10/100/1000Mbps Ethernet devices, while the 2 non-PoE uplink ports support 10/100/1000Mbps Ethernet devices and it’s compliant with IEEE 802.3af/802.3at network standards.

Used for many applications the Cudy 16 Port PoE+ Switch works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features a VLAN mode for additional security, this allows the ports to be isolated from one another.

Its simple plug-and-play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design with venting holes to help dissipate heat with silent operation.

Watchdog guarantees the uninterrupted operation of your PoE devices. The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

FEATURES

  • 16 Gigabit POE Ports, 2 Uplink Gigabit Ports and 2 Gigabit SFP Slots 1 Console Port
  • Compatible with IEEE802.3at and IEEE802.3af
  • Ethernet port supports 10/100/1000M adaptive
  • Fanless design, natural cooling, compatible with 1U Rack Mount
  • Support PoE Power Management, PoE watchdog
  • Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 15KV

Product information

Brand
Cudy
SKU
GS2018PS2
Warranty
2 Year
AC Input
AC100-240V, 50/60Hz
Ethernet Port
16 x 10/100/1000Mbps PoE Port, 2 x 1000Mbps SFP Port, 2 x 1000Mbps Uplink Port, 1 x RJ45 Console Port
Bandwidth
40Gbps
Packet Forwarding rate
19.76Mpps
DDR SDRAM
128MB
Flash Memory
16MB
Packet Neck Scarfer Memory
4M
MAC Address
8K
Jumbo frame
9.6Kbytes
VLANs
4096
IEEE 802.3
Ethernet MAC Protocol
IEEE 802.3i
10BASE-T Ethernet
IEEE 802.3u
100BASE-TX Fast Ethernet
IEEE 802.3ab
1000BASE-T Gigabit Ethernet
IEEE 802.3z
1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3ad
Standard method for performing link aggregation
IEEE 802.3x
Flow control
IEEE 802.1ab
LLDP/LLDP-MED (Link Layer Discovery Protocol)
IEEE 802.1p
LAN Layer QoS/CoS Protocol Traffic Prioritization (Multicast filtering function)
IEEE 802.1q
VLAN Bridge Operation
IEEE 802.1x
Client/Server Access Control and Authentication Protocol
IEEE 802.1d
STP
IEEE 802.1s
MSTP
IEEE 802.1w
RSTP
PoE protocol
IEEE802.3af (15.4 W), IEEE802.3at (30 W)
Network Media
10BASE-T: Cat3, 4, 5 or above UTP(≤100 M), 100BASE-TX: Cat5 or above UTP(≤100 M), 1000BASE-TX: Cat5 or above UTP(≤100 M)
Fiber Medium
Multi-mode Fiber: 50/125, 62.5/125, 100/140um, Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um
Indicator
PWR, SYS, PoE, Link/ACT
PWR (Power Indicator)
Lighting: Powered, Un-Light: No Power
SYS (System Indicator)
Flashing: System Start-up, Lighting: System Running
PoE
Lighting: PoE on, Un-Light: PoE off
Link/ACT
Lighting: Link connection, Flashing: Data transmission, Un-Light: Link disconnect
VLAN
1-16 ports are isolated from each other, and the PoE Watchdog function is open (hardware takes precedence over software)
Default
All ports can communicate with each other, PoE Watchdog is closed
Extend
13-16 Port: Supports 250m link extension at a rate of 10M, other ports normal, PoE Watchdog open (hardware takes precedence over software)
Reset
Short press restart, long press 5 seconds to restore factory Settings
