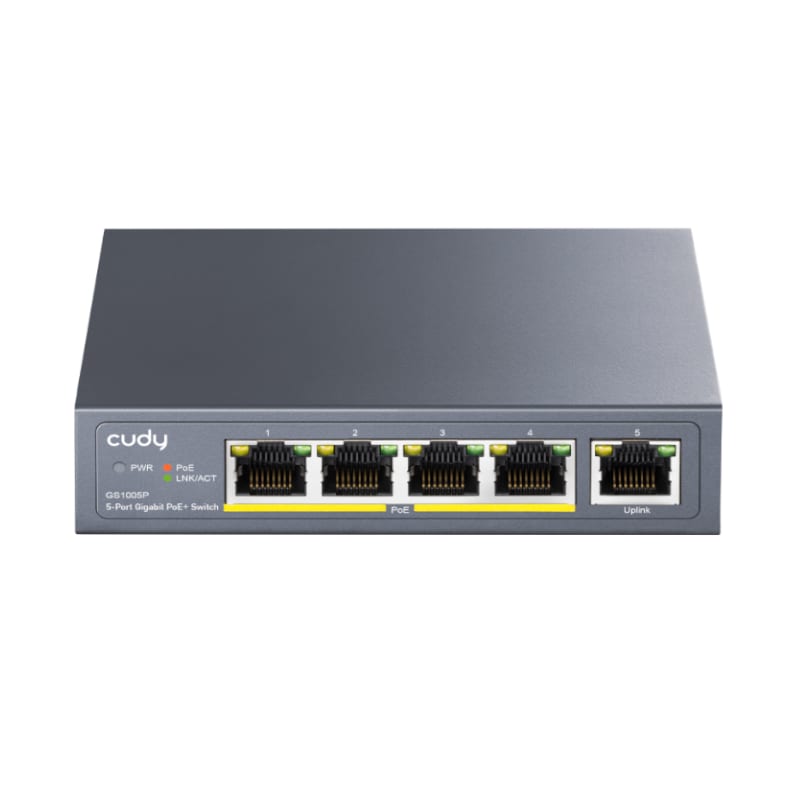

Cudy 5-Port Gigabit Unmanaged PoE+ Switch 60W - Desktop

Brand: Cudy

NetworkingSwitches

  • Delivered nationwideDoor-to-door, anywhere in South Africa
  • 2 YearLocal support
  • 7-day returnsChange your mind within 7 days of delivery. Returns policy
  • Secure checkoutPaid on an encrypted payment page

Description

The Cudy GS1005P 5-Port Gigabit POE+ Switch offers the forwarding capacity to simultaneously process traffic on all ports at a line rate without any packet loss. For its total, non-blocking throughput, each cudy switch supports up to 5 Gbps with a switching capacity of 10 Gbps.

The 5 port switch supports 60W total PoE power and up to 30W for one PoE port. For additional protection, it features power auto-detection for devices. This feature will not burn non-standard PoE devices or normal PoE switches. It also complies with IEEE802.3af/at Standard speeds for great performance.

Used for many applications the Cudy GS1005P works with IP Cameras for home, office or small businesses. It also works well with VoIP phones for business conferences and WiFi APs for the office and businesses.

Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design for silent operation.

FEATURES

  • Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab,IEEE802.3af, IEEE802.3at
  • Provides 5 10/100/1000Base-TX ports
  • 60W PoE power output total
  • High back-plane bandwidth 10Gbps
  • IEEE802.3x Flow control
  • EMI standards complies with FCC, CE class B

Product information

Brand
Cudy
SKU
GS1005P
Warranty
2 Year
Power
Power supply: External Power Adaptor
Voltage Range
DC48~57V
Switch Consumption
<5W
Ethernet
Speed: 1~5 Port: 10/100/1000Mbps
Uplink
10/100/1000Mbps
Transmission Distance
100Meter (328ft)
Network Switch Ethernet Standard
IEEE 802.3/802.3u/802.3ab/802.3af/at
Switching capacity
10G
Transfer Rate
14,880pps for 10Mbps
MAC Address
2K MAC address table
LINK/ACT
On – Green: The port is connecting
Blinks
The port is receiving or transmitting data
Off
The port is not linked successfully with the device
POE On – Orange
PD is connected
Capacity
60W
PoE pin assignment
V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6)
Colour
Grey
Product Dimensions
11.9 x 8.5 x 2.8 cm
