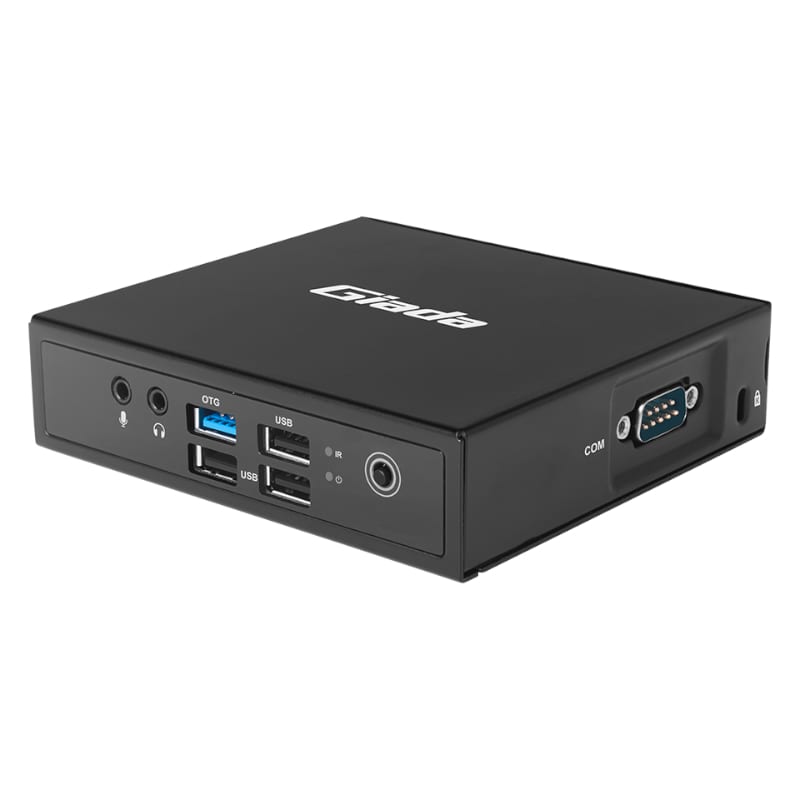

Giada DN74 RK3399 4GB DDR4 32GB EMMC
Brand: Giada
- Delivered nationwideDoor-to-door, anywhere in South Africa
- 2 YearLocal support
- 7-day returnsChange your mind within 7 days of delivery. Returns policy
- Secure checkoutPaid on an encrypted payment page
Description
The Giada DN74 ARM Fanless Android Signage Player utilises an RK3399 Dual-core ARM Cortex-A72 and a Quad-core ARM Cortex-A53 CPU. It has onboard memory and eMMC storage. Its dual HDMI outputs support two displays, with one reaching 4K resolutions and the other running at a resolution of 2K. Giada brings all of these components together with the Android 7.1 operation system, making it a suitable entry-level signage player for Android environments.
Features
- Rockchip RK3399
- Onboard 4GB LPDDR4 memory
- Two HDMI ports, one supporting 4K and the other 2K
- Onboard eMMC storage of 32GB
- One USB3.0 port and three USB2.0 ports
- RS232 Serial Port
- RJ45 Network connection
- Mini-PCIe slot for 3G/4G connectivity
- SIM Card slot
Product information
- Brand
- Giada
- SKU
- DN74-3399R42E5G-GIA V2
- Warranty
- 2 Year
- Processor CPU
- Rockchip RK3399
- Frequency
- Up to 1.8GHz
- Processing Units
- 2 Cores Cortex-A72 & 4 Cores Cortex-A53
- TDP
- 6W
- Memory Type
- LPDDR4
- Socket
- Onboard
- Size
- 4GB
- Graphics GPU
- Mali-T860MP4
- Graphic Engine
- OpenGL ES1.1/2.0/3.0/3.1, OpenCL, Support AFBC (ARM Frame Neck Scarfer Compression)
- Video Decoding Capability
- 4K VP9 decoders, 4K 10bits H.265 video decoders, 1080P VC-1, MPEG-1/2/4, VP8 video decoders
- Display HDMI
- 1x HDMI (Max. 4K@60Hz) | 1x HDMI (Max. 2K@30Hz)
- Network Controller
- 1 x Pef7071 PHY
- Interface
- 1x RJ45
- I/O USB
- 1 x USB3.2 Gen1 (OTG), 3 x USB2.0
- Serial Port
- 2x RS232
- Audio
- 1x MIC-IN, 1x AUDIO-OUT
- Mini-PCIe
- 1x Full-size Mini-PCIe for 3G/4G
- SIM
- 1x SIM Slot
- WiFi on Board
- 1x WiFi Module Onboard (WIFI 5GHz, IEEE802.11 a/b/g/ac)
- Storage eMMC
- 32GB
- Power Power Type
- DC-IN
- Power Adapter
- 12V/2A
- Environment Operating Temperature
- 0℃ ~ 40℃ at 0.7m/s Air Flow
- Relative Humidity
- 95%@40℃ (non-condensing)
- Supported Operating Systems
- Android 7.1
- Mounting
- Desk/Wall Mounting and VESA
- Certification
- CE, FCC
- Dimensions
- 11.66 x 10.74 x 3 cm
