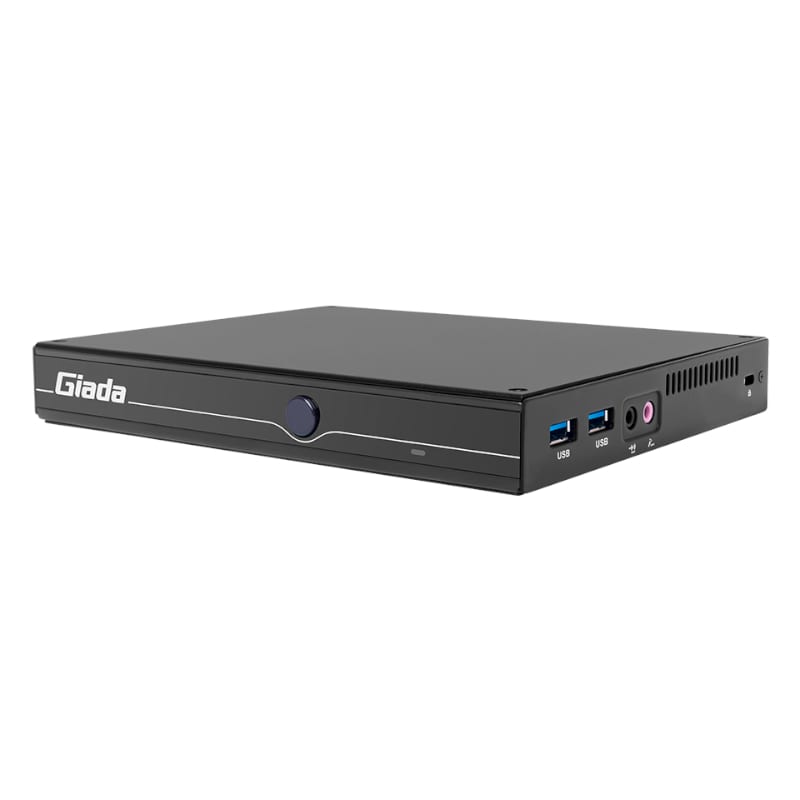

Giada F106D Intel Celeron N5100 4GB Onboard (2 Channels) 1*M.2 Slot (2242/ 2280) for SSD 1 x Full-size Mini-PCIe 1xDP 1xHDMI
Brand: Giada
- Delivered nationwideDoor-to-door, anywhere in South Africa
- 2 YearLocal support
- 7-day returnsChange your mind within 7 days of delivery. Returns policy
- Secure checkoutPaid on an encrypted payment page
Description
The Giada F106D Mini PC comes with Jasper Lake processors, such as the Celeron® N5100 (TDP 6W, 1.1GHz base frequency). The PC utilises Intel® UHD Graphics and is capable of delivering vibrant dual 1080p video playback. The device has HDMI 2.0a and DisplayPort 1.2 ports, which are capable of supporting resolutions up to 4096 x 2160 at a refresh rate of 60Hz. The device is equipped with a passive thermal cooling system, which features a fanless design. This design not only reduces the failure rate but also ensures that the device operates noise-free and remains dustproof. The Giada F106D Mini PC is designed to be used in mission-critical applications.
FEATURES
- Intel® Celeron® N5100 Processor
- 1 x DP, 1 x HDMI, Supporting 4K Display
- Onboard LPDDR4 4GB
- 2 x RJ45 Gigabit LAN and 1 x E-Key M.2 (2230) for Wi-Fi/BT
- Long life cycle
- Fanless Design
Product information
- Brand
- Giada
- SKU
- F106D-FVN510042N0G-GIA
- Warranty
- 2 Year
- CPU
- Intel® Celeron® N5100 processor (Fanless)
- Turbo Frequency
- 2.80 GHz/2.90 GHz
- Chipset
- SoC
- Processing Units
- 4 Cores/4 Cores
- Type
- Onboard LPDDR4-2666 MHz
- Size
- 4GB
- Socket 1
- 1 x M-Key M.2 (2242/2280) for SSD (only PCIe SSD)
- Socket 2
- 1 x Full-size Mini-PCIe for MSATA
- GPU
- Intel® UHD Graphics
- Graphic Engine
- DirectX 12.1, OpenGL 3.0, OpenCL 1.1, OpenGL ES 2.0, H.264, MEPG2
- DisplayPort
- 1 x DP (Max.4096 x 2160 @60 Hz)
- HDMI
- 1 x HDMI (Max.4096 x 2160@60Hz)
- Controller
- Realtek RTL 8111H Gigabit Ethernet
- Interface
- 2 x RJ45
- Wi-Fi/BT
- 1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6
- Mobile Network
- 3G/4G colay with 1 x Mini-PCIe for MSATA, 1 x SIM Slot
- USB
- 2 x USB3.2 Gen2, 4 x USB2.0
- Serial Port
- 1 x RS232
- Audio
- 1 x MIC-IN, 1 x AUDIO-OUT
- Antenna
- 2 x Connector for Wi-Fi/BT, 1 x Connector for 3G/4G (Reserved)
- Button
- 1 x Power on, 1 x CLR-CMOS
- TPM
- TPM2.0
- Watchdog Timer
- Yes
- Auto Power on
- Yes
- RTC
- Set up independently every day
- Remo on
- Yes
- Fanless
- Yes
- Windows
- Windows 10 (64Bit), Windows 11 (64bit)
- Linux
- Linux Ubuntu (64bit)
- Power Type
- DC-IN
- Input Voltage
- 19V/2.37A
- Operating Temperature
- 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
- Relative Humidity
- 95% @ 45°C (non-condensing)
- Certification
- CE, FCC Class B
- Construction
- Metal
- Colour
- Black
- Dimensions
- 18.9 x 14.8 x 2.6 cm
