CommScope NETCONNECT Cat 6 24-Port 1U Patch Panel (NPP-6-DM-1U-24)
Brand: CommScope
- Delivered nationwideDoor-to-door, anywhere in South Africa
- Supplier warrantyLocal support
- 7-day returnsChange your mind within 7 days of delivery. Returns policy
- Secure checkoutPaid on an encrypted payment page
Description

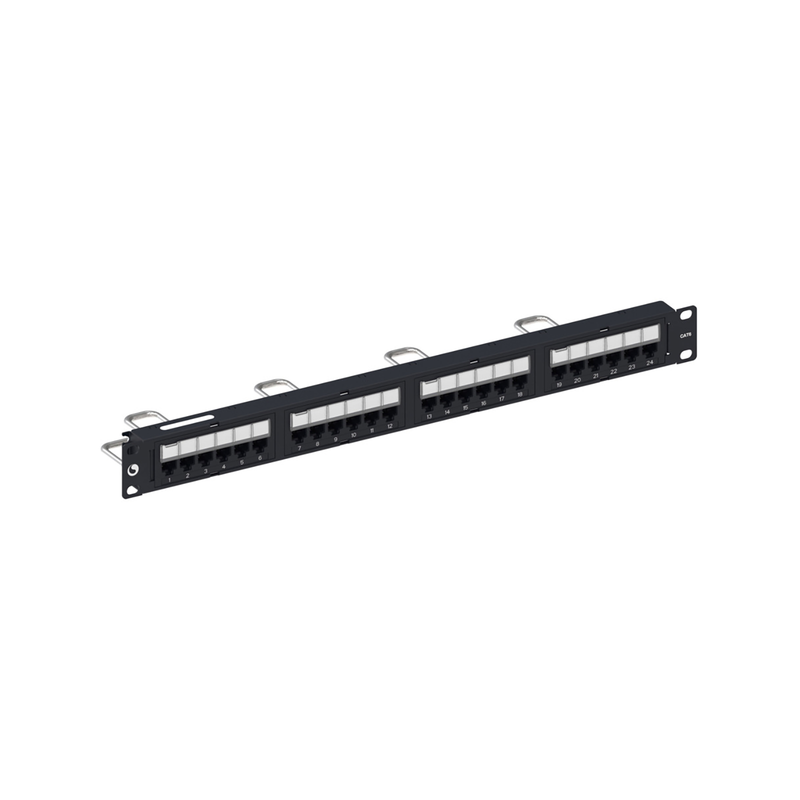

The CommScope NETCONNECT NPP-6-DM-1U-24 is an unshielded Category 6 distribution module patch panel. It has 24 RJ45 ports and takes up a single 1U space in a 19-inch rack. It suits network cabinets and server rooms where structured cabling is terminated at the rack.
Each cable punches down onto IDC terminals at the back, wired to T568A or T568B, and a rear cable management bar holds the runs in place. CommScope states that the panel complies with IEEE 802.3bt (Type 4) recommendations for power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1 and -2, or TIA TSB-184-A.
Key points
- 24 unshielded Cat 6 ports in 1U
- Meets ANSI/TIA-568.2-D and ISO/IEC 11801 Class E
- Takes 22-24 AWG solid or stranded copper
- Rack mounting screws are not included
Product information
- Brand
- CommScope
- SKU
- 760237024
- Warranty
- Supplier warranty
- Category
- Cat 6
- Cable type
- Unshielded
- Ports
- 24
- Rack fit
- EIA 19 in, 1U
- Panel style
- Flat
- Termination type
- IDC
- Conductor type
- Solid, stranded
- Wire size
- 22-24 AWG (0.64-0.51 mm) solid or seven-stranded copper
- Wiring
- T568A, T568B
- Transmission standards
- ANSI/TIA-568.2-D, ISO/IEC 11801 Class E
- Remote powering
- Complies with IEEE 802.3bt (Type 4) recommendations when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A
- Dimensions
- 43.7 x 482.6 x 115.5 mm (H x W x D, with cable management)
- Contact plating
- Gold
- Operating temperature
- -10 °C to +60 °C
- Colour
- Black
