VSOL 1 Port GPON OLT DC + AC
Brand: V-SOL
- Delivered nationwideDoor-to-door, anywhere in South Africa
- 1 YearLocal support
- 7-day returnsChange your mind within 7 days of delivery. Returns policy
- Secure checkoutPaid on an encrypted payment page
Description

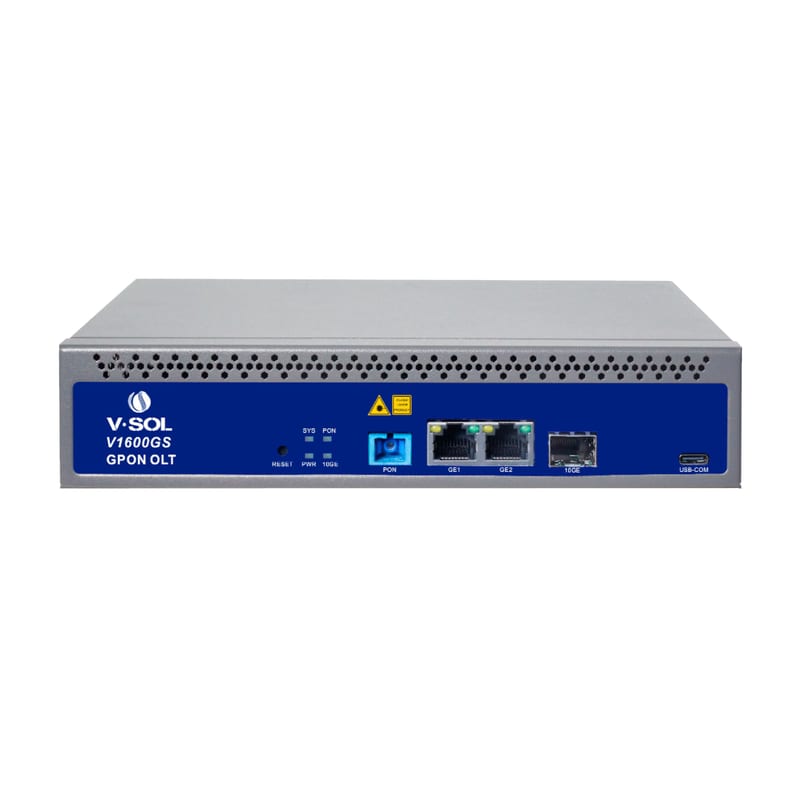

The VSOL V1600GS-F Single Port GPON OLT is a high-performance, cost-effective optical line terminal purpose-built for delivering ultra-fast and reliable fiber optic connectivity across small to medium-sized networks. Designed in a compact 1U box form factor, the V1600GS-F integrates GPON OLT functionality with gateway and AC controller features, making it an all-in-one solution for FTTH (Fiber-to-the-Home), SOHO environments, SMBs, and rental housing network upgrades.
Equipped with one GPON port and supporting a splitting ratio of up to 1:128, this device can handle large-scale user deployments while maintaining excellent performance. With transmission distances of up to 20km, the V1600GS-F ensures stable and long-range coverage, perfect for delivering gigabit broadband services over passive optical networks.
Capable of 1.25Gbps upstream and 2.5Gbps downstream, the V1600GS-F is ideal for applications that demand high throughput such as HD video streaming, IP telephony, cloud access, and enterprise-level data management. Its flexible deployment makes it suitable for both urban and rural network topologies where performance and affordability are critical.
The device features three uplink ports — two Gigabit Ethernet RJ45 and one SFP/SFP+ combo port supporting up to 10Gbps — ensuring fast and scalable backhaul connectivity. It includes centralized network management through WEB, Telnet, CLI, and SNMP, offering streamlined deployment and simplified administration across a range of network architectures. With support for plug-and-play AP control and centralized AC management, it forms the backbone of a POL (Passive Optical LAN) setup for modern offices and enterprise parks.
Additionally, the V1600GS-F is engineered for resilience and durability, featuring 4KV lightning protection for power and 1KV surge protection on device interfaces. It also supports both AC (100~240V) and DC (12V/2A) power inputs, offering flexibility across installation scenarios.
FEATURES
- All-in-one Single Port GPON OLT
- Integrated OLT, Gateway and AC Function
- High-Speed Fiber Optic Coverage
- Easy Installation Saves Investment
- Centralized Management and Plug & Play
- AC+AP Solution
- POL Network of Small & Medium-sized Enterprises
- Rental Housing Network Renovation
Product information
- Brand
- V-SOL
- SKU
- V1600GS-F
- Warranty
- 1 Year
- Rack
- 1U
- Uplink Port QTY
- 3
- RJ45(GE)
- 2
- SFP(GE)/SFP+(10GE)
- 1
- GPON Port Specification QTY
- 1
- Fiber Type
- 9/125μm SM
- Connector
- SC/UPC, TX: 7.5±0.5dBm, Sen: -32dBm
- GPON port speed
- Upstream 1.244Gbps | Downstream 2.488Gbps
- Wavelength
- TX 1490nm, RX 1310nm
- Max splitting ratio
- 1:128
- Transmission Distance
- 20KM
- Management Ports
- 1 x USB-COM(Type-C) port
- Backplane Bandwidth
- 16Gbps
- Port Forwarding Rate
- 23.808Mpps
- Management Mode
- WEB/Telnet/CLI/SNMP
- Power Supply AC Power Adapter
- Working Voltage Range: 100~240V | Rated Voltage: 110V/220V
- DC Power Adapter
- DC 12V/2A
- Lightning Protection Level Power supply
- 4KV
- Device Interface
- 1KV
- Product Dimensions
- 21 x 17.3 x 4.36 cm
- Product Weight
- 1070 g
