Hikvision Thermal & Optical Bi-Spectrum IP Camera

Brand: Hikvision

Security & CCTVIP Cameras

  • Delivered nationwideDoor-to-door, anywhere in South Africa
  • Supplier warrantyLocal support
  • 7-day returnsChange your mind within 7 days of delivery. Returns policy
  • Secure checkoutPaid on an encrypted payment page

Description

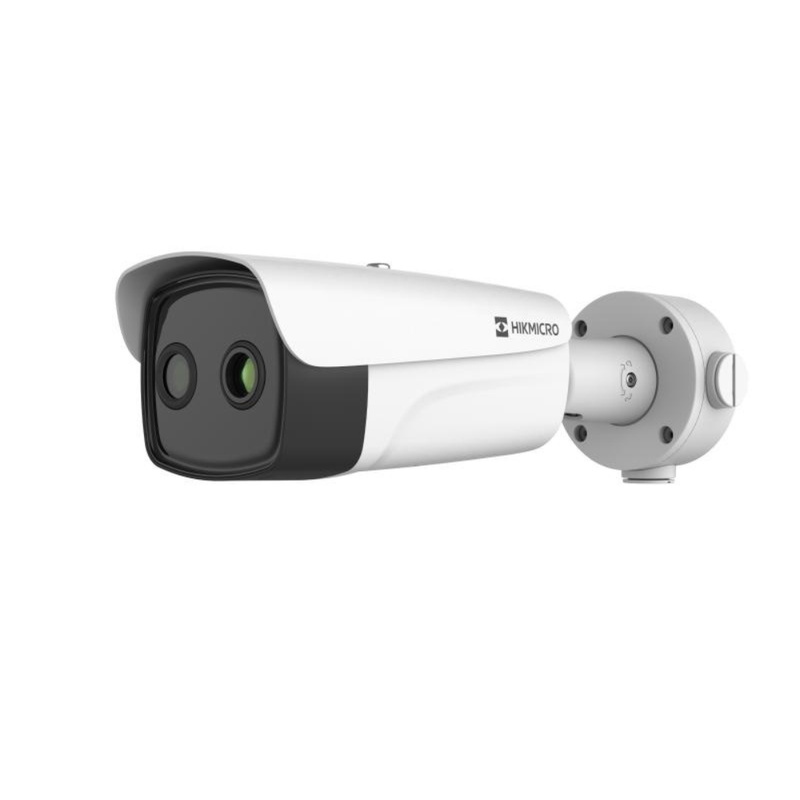

The Hikvision HM-TD2638-15/G0/T1Y is a bi-spectrum network bullet camera that pairs a 384 × 288 thermal sensor with a 2688 × 1520 optical camera in one anti-corrosion housing. It is designed for perimeter protection and fire prevention at critical sites such as airports, railways, prisons and power stations.

Key points

  • Thermal channel: VOx uncooled sensor, 12 μm pixel pitch, NETD ≤ 25 mK, 15.4 mm lens with a 17° × 12.8° field of view
  • Temperature exception alarm from -20 °C to 150 °C (± 8 °C), plus fire and smoking detection
  • Line crossing, intrusion, region entrance and region exiting rules with vehicle/human classification
  • 8 mm optical lens with IR up to 75 m and 120 dB WDR
  • IP67, IK10 and NEMA 4X housing, powered by PoE, 12 VDC or 24 VAC

Product information

Brand
Hikvision
SKU
HM-TD2638-15/G0/T1Y
Warranty
Supplier warranty
Thermal sensor
Vanadium Oxide Uncooled Focal Plane Arrays, 384 x 288, 12 μm pixel pitch
NETD
≤ 25 mK (@25 °C, F# = 1.0)
Thermal lens
15.4 mm, F1.0, 17° × 12.8° (H × V)
Optical sensor
1/2.7" Progressive Scan CMOS, 2688 × 1520
Optical lens
8 mm, 39.4° × 22° (H × V)
Min. illumination and IR
0.0089 Lux @ (F1.6, AGC ON), 0 Lux with IR; IR distance up to 75 m
Temperature measurement
-20 °C to 150 °C (-4 °F to 302 °F), accuracy ± 8 °C (±14.4 °F)
Smart functions
4 VCA rule types (line crossing, intrusion, region entrance, region exiting), up to 8 rules; fire detection up to 10 fire points; smoking detection up to 10 points
Video compression
Main stream: H.265/H.264; sub-stream: H.265/H.264/MJPEG
Interfaces
1 × RJ45 10 M/100 M Ethernet, 1 × RS-485, 2 alarm in, 2 relay out, 3.5 mm audio in, audio out, BNC analogue out
Storage
MicroSD/SDHC/SDXC up to 256 G, NAS (NFS, SMB/CIFS), ANR
Power
24 VAC ± 25% (max. 14 W), 12 VDC ± 25% (max. 12 W), PoE 802.3af class 3 (max. 12 W)
Protection
IP67, IK10, NEMA 4X anti-corrosion, TVS 4000V lightning protection
Operating conditions
-40 °C to 70 °C (-40 °F to 158 °F), humidity 95% or less
Dimensions and weight
376.1 mm × 119.1 mm × 118.1 mm, 1.82 kg
