Eaton 9PX 1500i RT2U LI-ION With Rail KIT UPS
Brand: Eaton
AccessoriesUPS & Surge Protection
- Delivered nationwideDoor-to-door, anywhere in South Africa
- 5 years (Eaton factory warranty)Local support
- 7-day returnsChange your mind within 7 days of delivery. Returns policy
- Secure checkoutPaid on an encrypted payment page
Description

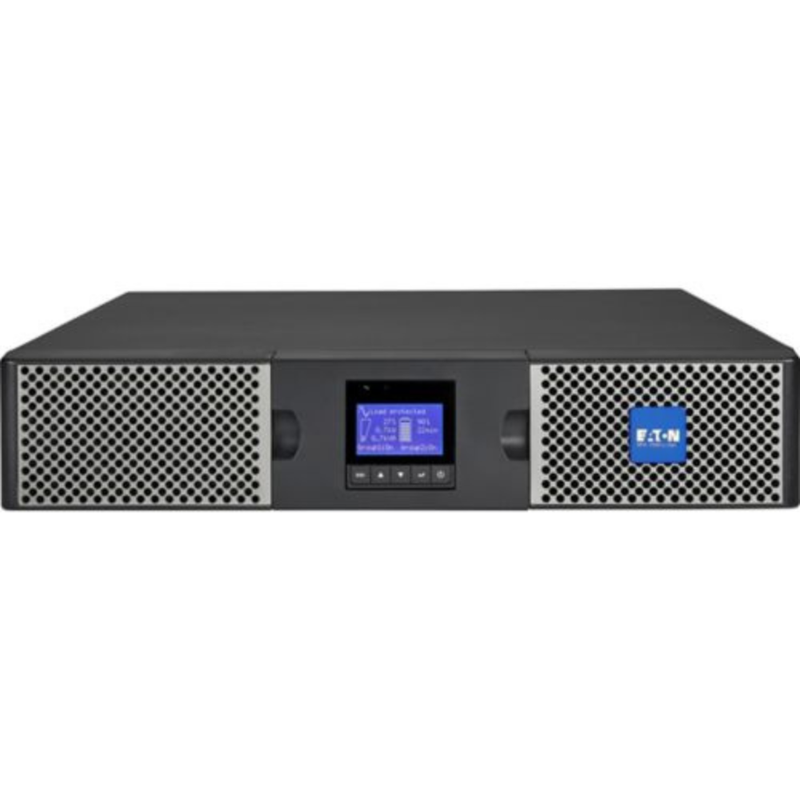

The Eaton 9PX 1500i RT2U Li-Ion is an online double-conversion UPS for IT, networking and storage equipment in small and medium data centres. It constantly monitors power conditions and regulates voltage and frequency, and an internal bypass keeps the load running if the UPS itself develops a fault. It fits a 19-inch rack at 2U or stands as a tower, and ships with the hardware for both.
Key points
- 1500 VA / 1500 W, unity power factor
- Lithium-ion batteries with 8 to 10 years service life, hot-swappable
- Eight IEC C13 outlets, with energy metering down to the managed outlet groups
- Graphical LCD, USB and RS232 ports, plus a slot for an optional communication card
- Runtime extendable with up to four external battery modules
Product information
- Brand
- Eaton
- SKU
- 9PX1500IRT2U-L
- Warranty
- 5 years (Eaton factory warranty)
- Capacity
- 1500 VA / 1500 W
- Topology
- Online/Double-conversion
- Form factor
- Rack/tower, 2U, 482.6 mm (19 inch) device
- Battery
- Lithium-ion with battery management system; hot-swappable internal batteries and EBMs
- Battery service life
- 8 to 10 years
- Runtime
- 10 min at full load, 21.5 min at half load
- Extended battery
- Up to 4 optional EBMs
- Input connection
- C14
- Outlets
- (8) C13
- Input voltage range
- 176-276 V (100-276 V with derating)
- Output voltage
- 230V default (200/208/220/230/240V), sine wave, 50/60 Hz
- Efficiency
- 92.5% at max. load, 97.5% in eco-mode
- Communication
- USB (HID), RS232 serial, remote on/off, remote power off, output relay, dry contacts; one slot for optional communication card
- Dimensions (H x W x D)
- 86.5 x 440 x 450 mm
- Weight
- 15.8 kg
