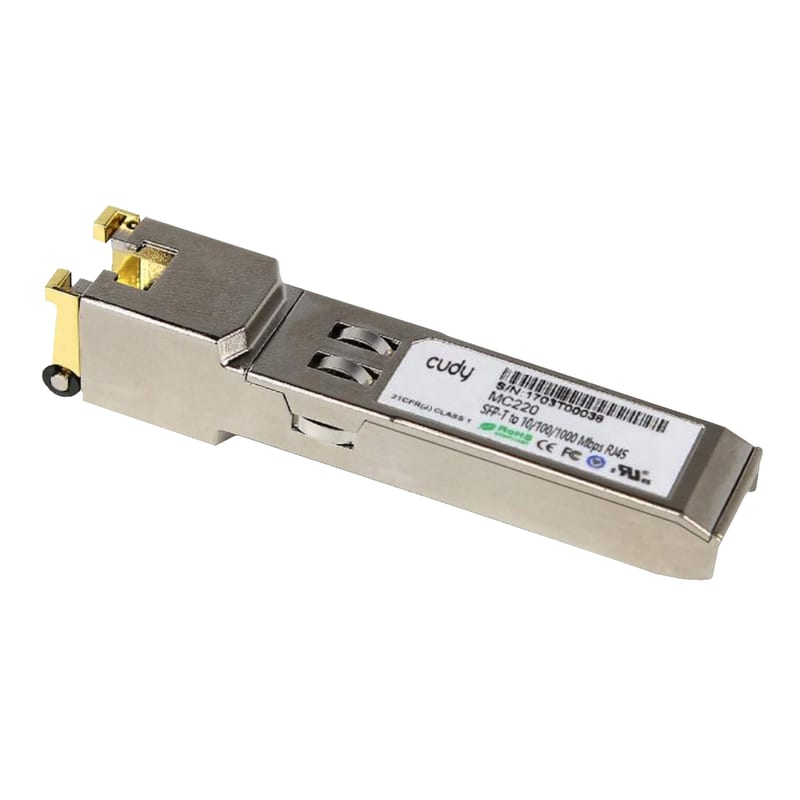

Cudy SFP to RJ45 Gigabit Ethernet Module 100m

Brand: Cudy

NetworkingWiFi Adapters & Dongles

  • Delivered nationwideDoor-to-door, anywhere in South Africa
  • 2 YearLocal support
  • 7-day returnsChange your mind within 7 days of delivery. Returns policy
  • Secure checkoutPaid on an encrypted payment page

Description

The Cudy SM220 SFP-T 10/100/1000Mbps RJ45 Ethernet Module delivers dependable and high-speed wired network connections for enterprise, SMB, and advanced home networking environments. Fully compliant with the SFP Multi-Source Agreement (MSA), this copper transceiver supports Gigabit Ethernet and 10/100/1000BASE-T standards as defined in IEEE 802.3, ensuring seamless compatibility with a wide range of switches, routers, and network interface cards. Whether upgrading infrastructure or expanding connectivity, the SM220 offers a cost-effective and flexible networking solution.

Engineered for efficiency, the hot-pluggable SFP footprint allows quick installation or replacement without service interruptions. Consuming just 1.05W typical power, the SM220 helps reduce energy costs while maintaining optimal performance. Its compact RJ45 connector assembly and fully metal enclosure not only enhance durability but also reduce electromagnetic interference (EMI) for stable and interference-free connections.

The SM220 supports bi-directional data rates up to 1.25Gbps over Cat 5 or better cabling, with 10/100/1000BASE-T operation in host systems equipped with a 1000BASE-X interface. Using the SFP’s RX_LOS pin for link indication, it provides reliable connectivity feedback to network administrators. The robust electrical design ensures minimal latency and consistent throughput, making it ideal for bandwidth-intensive tasks like VoIP, video conferencing, and large-scale file transfers.

With an operating temperature range of 0°C to +70°C, the Cudy SM220 is suited for diverse networking environments, from climate-controlled server rooms to active office floors. Its RoHS-compliant, lead-free construction ensures eco-friendly operation, while the single +3.3V power supply simplifies integration into existing setups. Perfect for upgrading to gigabit speeds or enhancing network flexibility, this module offers a dependable and scalable solution for modern networking needs.

FEATURES

  • Up to 1.25 Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Low power dissipation(1.05W typical)
  • Compact RJ-45 connector assembly
  • Fully metal enclosure, for lower EMI
  • RoHS compliant and lead-free
  • Single +3.3V power supply
  • 10/100/1000 BASE-T operation in host systems with 1000BASE-X interface
  • 1.25 Gigabit Ethernet over Cat 5 cable
  • Ambient Operating temperature: 0°C to +70°C

Product information

Brand
Cudy
SKU
SM220
Warranty
2 Year
Connector
RJ45
Data Rate (Min/Max)
10Mbps/ 1000Mbps
Form Factor
SFP
+3.3 V olt Electrical Power Interface
Supply Current: 320mA(Typ)/ 375mA(Max)
Input Voltage
3.13V(Min)/ 3.3V(Typ)/ 3.47V(Max)
Maximum Voltage
4V
Surge Current
30mA
Low-Speed Signals, Electronic Characteristics
SFP Output LOW (Min/Max): 0/ 0.5V
SFP Output HIGH (Min/Max)
host_Vcc -0.5/ host_Vcc + 0.3V
SFP Input LOW (Min/Max)
0/ 0.8V
SFP Input HIGH (Min/Max)
2/ Vcc + 0.3V
High-Speed Electrical Interface, Transmission Line-SFP
Line Frequency: 125MHz
Tx Output Impedance
100 Ohm
Rx Input Impedance
100 Ohm
High-Speed Electrical Interface, Host-SFP
Single ended data input swing (Min/Max): 250/1200mV
Single ended data output swing (Min/Max)
350/800mV
Rise/Fall Time
175 psec
Tx Input Impedance
50 Ohm
Rx Output Impedance
50 Ohm
Operating Temperature (Min/Max)
0/70°C
Storage Temperature (Min/Max)
-40/85°C
Serial Bus Timing, Requirements
I 2C Clock Rate (Min/Max): 0/ 200 000Hz
Product Dimensions
6.8 x 1.4 x 1.4 cm
