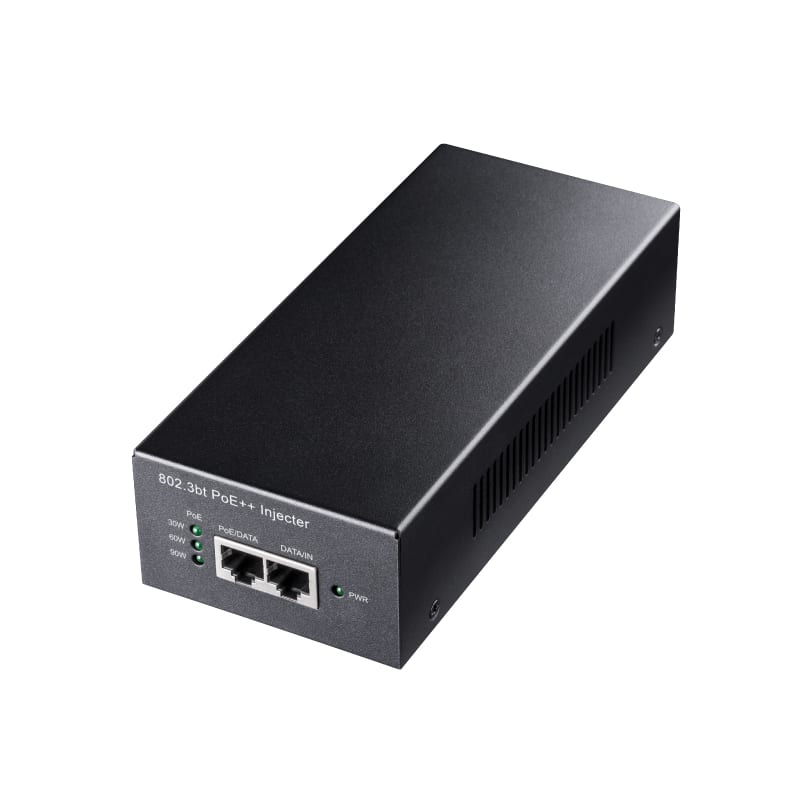

Cudy 90W Gigabit PoE+ Injector

Brand: Cudy

NetworkingWiFi Adapters & Dongles

  • Delivered nationwideDoor-to-door, anywhere in South Africa
  • 2 YearLocal support
  • 7-day returnsChange your mind within 7 days of delivery. Returns policy
  • Secure checkoutPaid on an encrypted payment page

Description

The Cudy POE400 90W Gigabit PoE/PoE+/PoE++ Injector is a great way to provide power over ethernet to all your compatible network and IP devices. It works well with various devices including IP cameras for home, office and small businesses, VOIP phones for business conferences, and WiFi Access Points for office and business. The POE400 is very versatile and can be easily mounted on the wall.

FEATURES

  • Full IEEE 802.3af IEEE 802.3at, IEEE802.3bt Compliant
  • Up to 90W of Power on 4-pairs
  • Auto-detect of POE IEEE 802.3af IEEE 802.3at, IEEE802.3bt equipment
  • Supports 10/100/1000Base-T applications
  • LED indicators power input indication
  • Distance up to 100 meters
  • Internal AC/DC converter – no need for external power modules
  • Easy plug-and-play installation
  • Surge protection

Product information

Brand
Cudy
SKU
POE400
Warranty
2 Year
No. of channels
1
Pass-Through Data Rates
10/100/1000Mbps
Power over Ethernet Output
Pin Assignment and Polarity: 1/2 (-), 3/6 (+),4/5 (+), 7/8 (-),
Output Power Voltage
56Vdc
User Port Power
90W
Input Power Requirements
AC Input Voltage: 100 to 240 VAC
AC Input Current
1A 100-240 VAC
AC Frequency
50 to 60 Hz
Indicators
System Indicator: AC Power
User Indicator
Channel Power
Connectors
Shielded RJ-45, EIA 568A and 568B
Protection
Over-current protection
Regulatory Compliance
IEEE 802.3af (15.4W)
Environmental Conditions Operating Ambient Temperature
0 to 45℃
Operating Humidity
Maximum 80%, Non-condensing
Storage Temperature
-20 to 70℃
Storage Humidity
Maximum 80%, Non-condensing
Product Dimensions
17.8 x 8 x 4.6 cm
